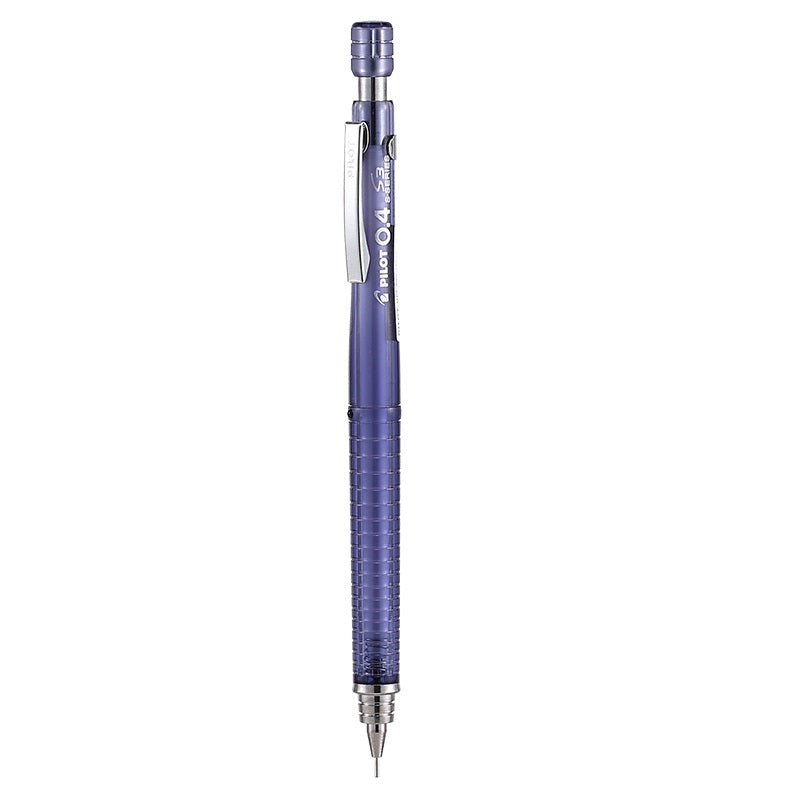

Pilot S3 Drafting Mechanical Pencil 0.4mm

Pilot S3 Drafting Mechanical Pencil 0.4mm

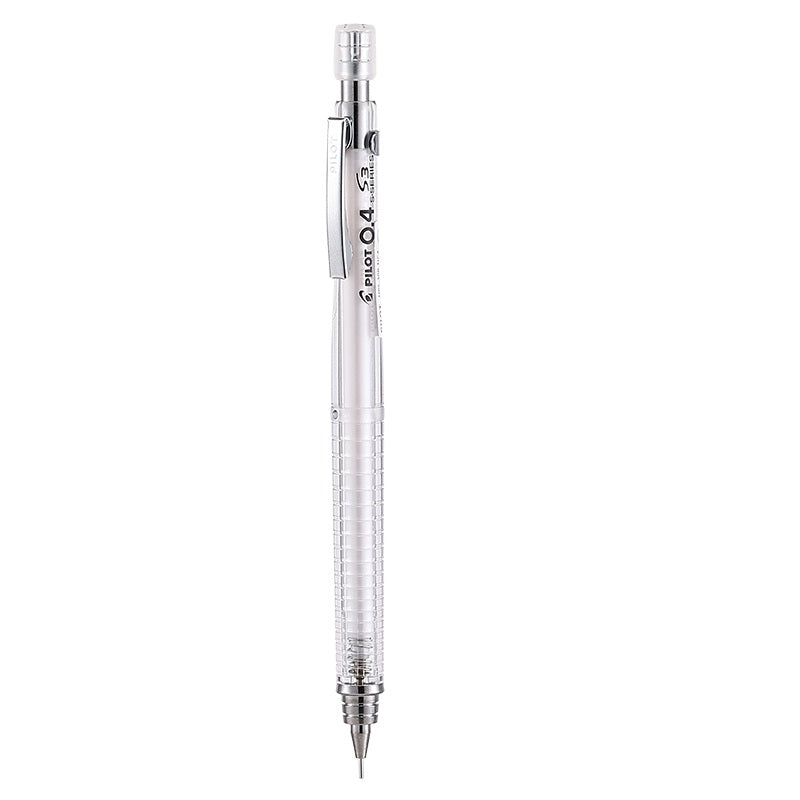

The Pilot S3 Drafting Mechanical Pencil 0.4mm is a precision Japanese technical instrument designed for illustrators, draftsmen, and students who require exceptional line control. Engineered as the entry cornerstone of Pilot's acclaimed S-Series family, the S3 features a specialized 0.4mm lead diameter that bridges the delicate precision of 0.3mm with the durability of 0.5mm. With a fixed 4mm stainless steel guide pipe, finely ribbed ergonomic grip, and translucent contoured barrel, it delivers wobble-free accuracy and smooth balance for daily writing and intricate technical drawing.

Key Features

• Specialized 0.4mm Caliber: Offers the ideal balance between razor-fine detail and core resilience, preventing lead breakage during dense calculations and fine line sketching.
• Fixed 4mm Drafting Guide Pipe: Extended metallic lead sleeve ensures unobstructed visibility against straightedges, architects' scales, and templates.
• Ribbed Anti-Slip Grip: Ergonomic grooved plastic section prevents finger slippage and cushions hand pressure during extended drafting sessions.
• Low Center-of-Gravity Design: Balanced weight distribution shifts stability toward the tip for steady, fatigue-free stroke control.

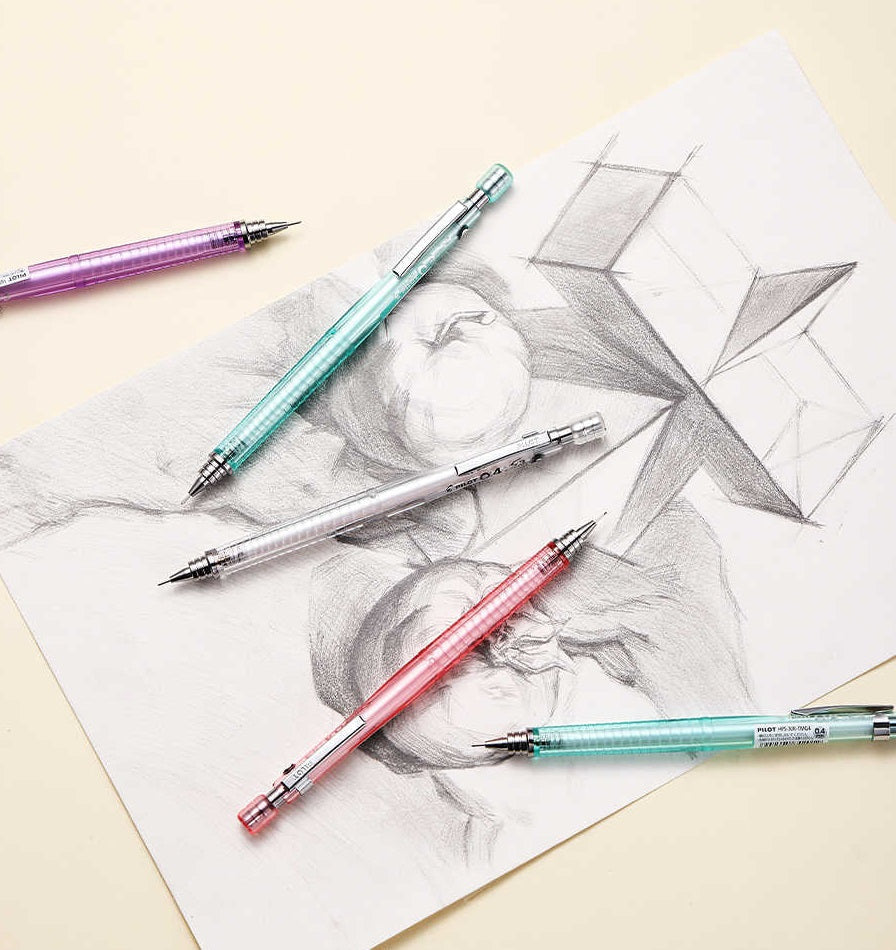

• Vibrant Translucent Barrels: Available in Clear, Pink, Purple, White, and Navy Blue translucent body colors with removable pocket clip and refillable eraser.

Specifications

• Brand: Pilot
• Series: Pilot S-Series (S3 / HPS-30R)
• Lead Diameter: 0.4 mm
• Sleeve Type: Fixed 4 mm Stainless Steel Drafting Sleeve

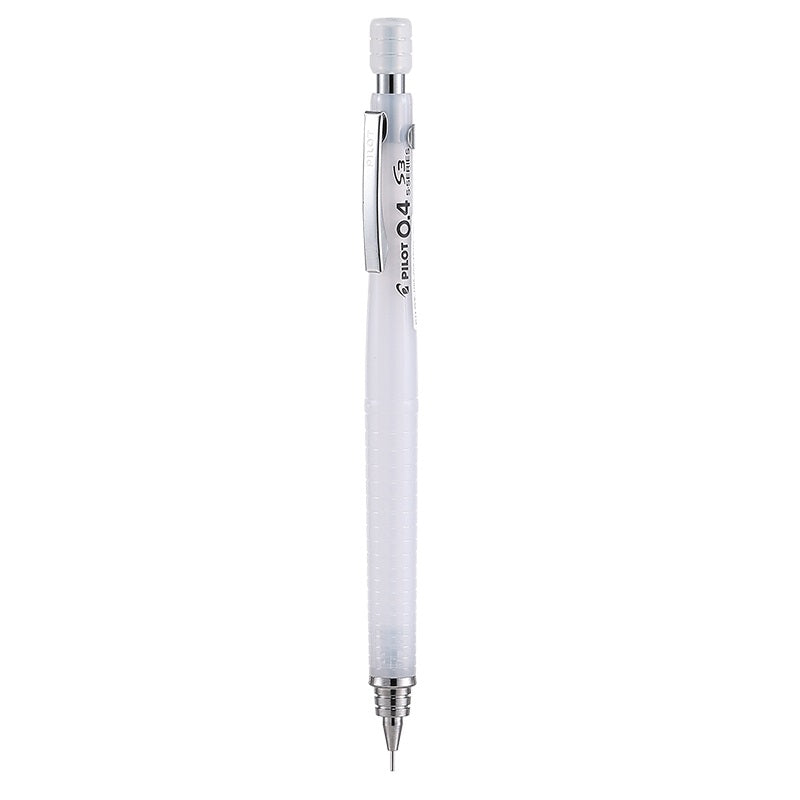

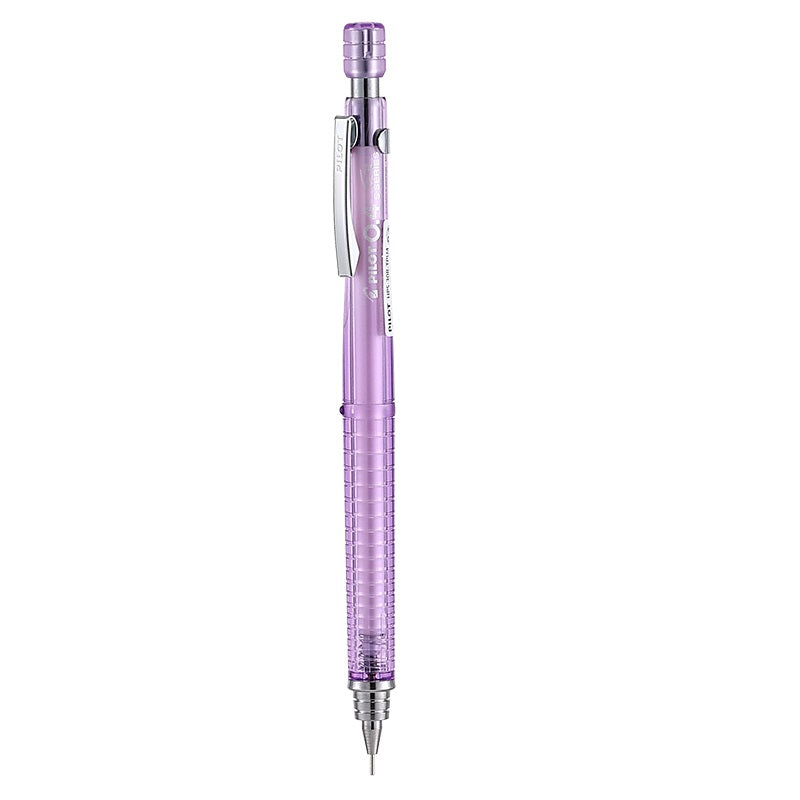

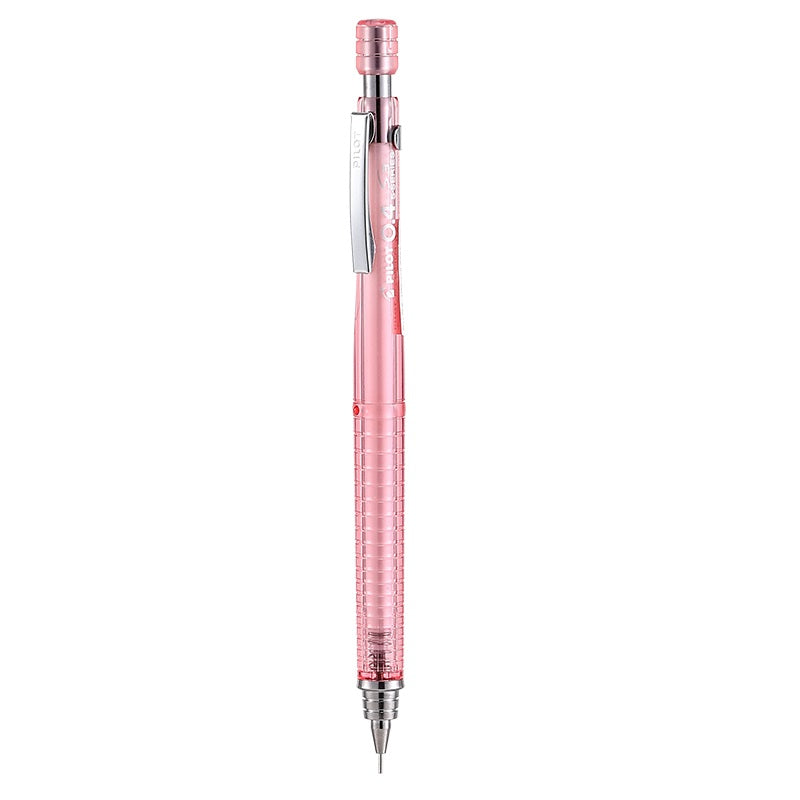

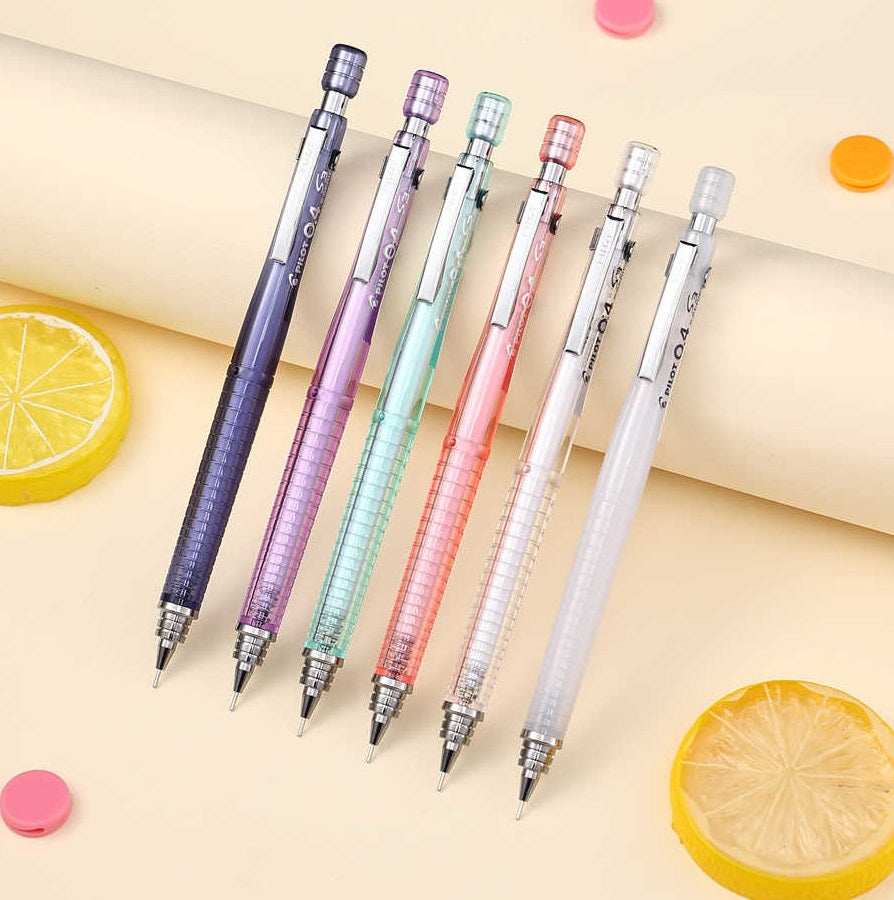

• Available Colors: Clear, Pink, Purple, White, Navy Blue
• Body Material: Durable Resin Body with Metal Pocket Clip
• Eraser: Refillable Eraser under Push-Button Cap
• Country of Origin: Japan

Frequently Asked Questions

What makes the 0.4mm lead size unique on the Pilot S3?
The 0.4mm lead caliber is an intermediate drafting size favored in Japan. It yields lines noticeably crisper and finer than standard 0.5mm lead while offering greater structural strength and break-resistance than ultra-fine 0.3mm lead.

Is the lead guide sleeve fixed or retractable?

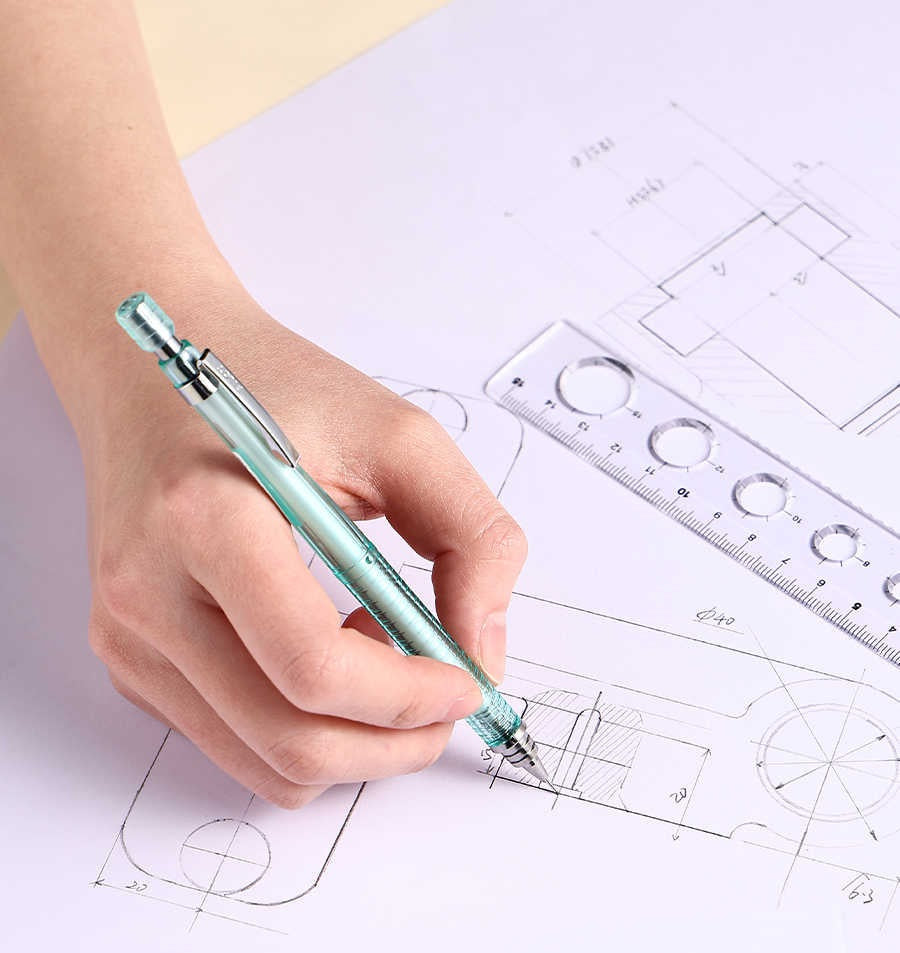

The Pilot S3 features a fixed 4mm stainless steel sleeve designed to track cleanly along rulers and drawing templates without flexing or obscuring your view of the page.

How does the S3 fit into Pilot's S-Series lineup?
The S3 is the foundational model of Pilot's S-Series (which includes S5, S10, S20, and S30). It shares the identical ergonomic silhouette as the higher-end wooden and metal models while featuring a lightweight resin barrel ideal for portable everyday carry.

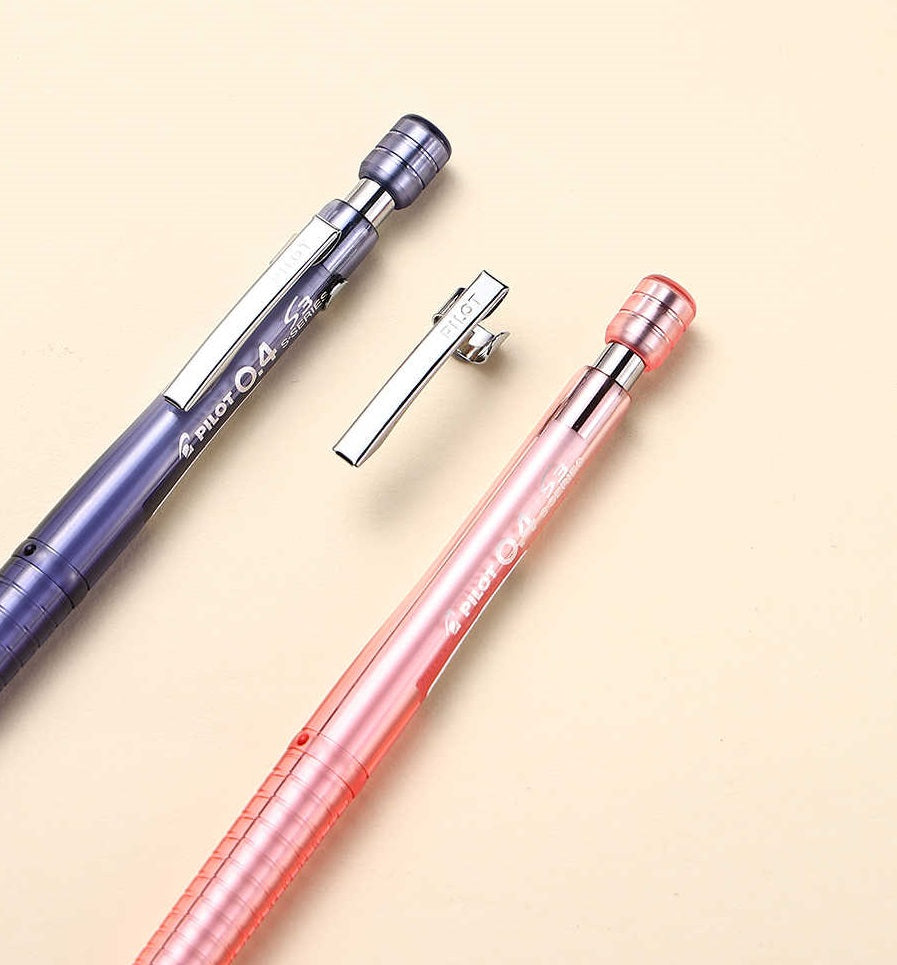

Can the pocket clip be removed for drafting?
Yes, the spring-steel pocket clip can easily be slid off the barrel to provide a completely cylindrical, unobstructed grip when rotating the pencil during technical linework.

What replacement eraser does the Pilot S3 use?
The pencil utilizes standard Pilot MS-10 replacement erasers, located beneath the removable metal knock cap.
