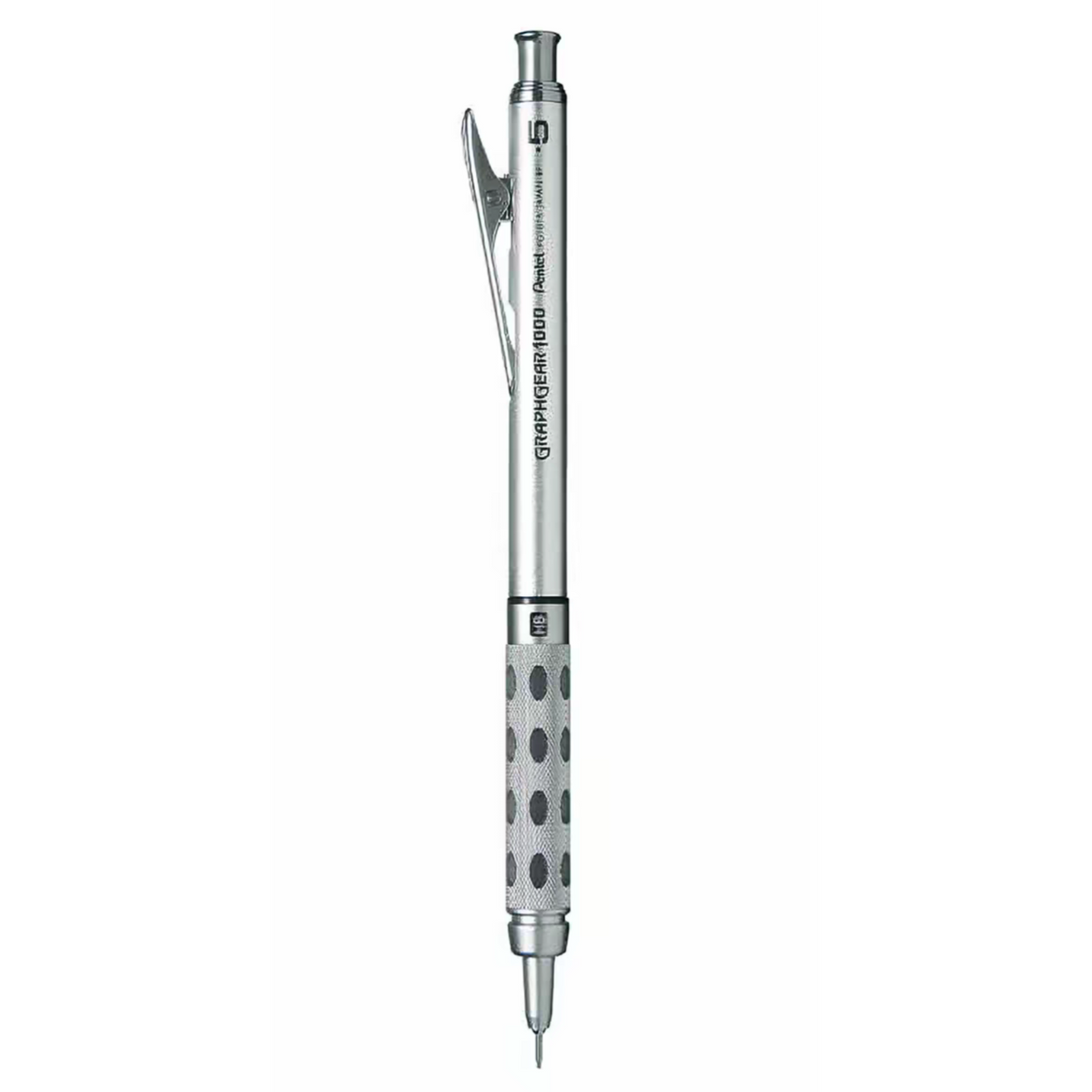

Pentel GraphGear 1000 Drafting Mechanical Pencil

Pentel GraphGear 1000 Drafting Mechanical Pencil

The Pentel GraphGear 1000 is a premier drafting mechanical pencil engineered in Japan for architects, illustrators, and stationery enthusiasts. Built with a full-metal body and a dual-action retractable tip mechanism, it protects the 4mm fixed sleeve and your pockets with a single clip release. Available in four precision lead diameters—0.3mm, 0.5mm, 0.7mm, and 0.9mm—it pairs an ergonomic knurled metal grip with soft rubber inlays for exceptional stability and control during extended writing and technical drawing sessions.

Key Features

• Dual-Action Retractable Sleeve: Depress the push button to extend the 4mm guide pipe; press the spring-loaded binder clip to safely retract the drafting tip into the barrel.
• Dual-Texture Grip: Brushed aluminum barrel with finely knurled metal and embedded latex-free rubber oval pads delivers non-slip tactile comfort.
• Lead Hardness Indicator: Adjustable built-in window lets you display lead grade markings (HB, H, B, 2B) for rapid identification.

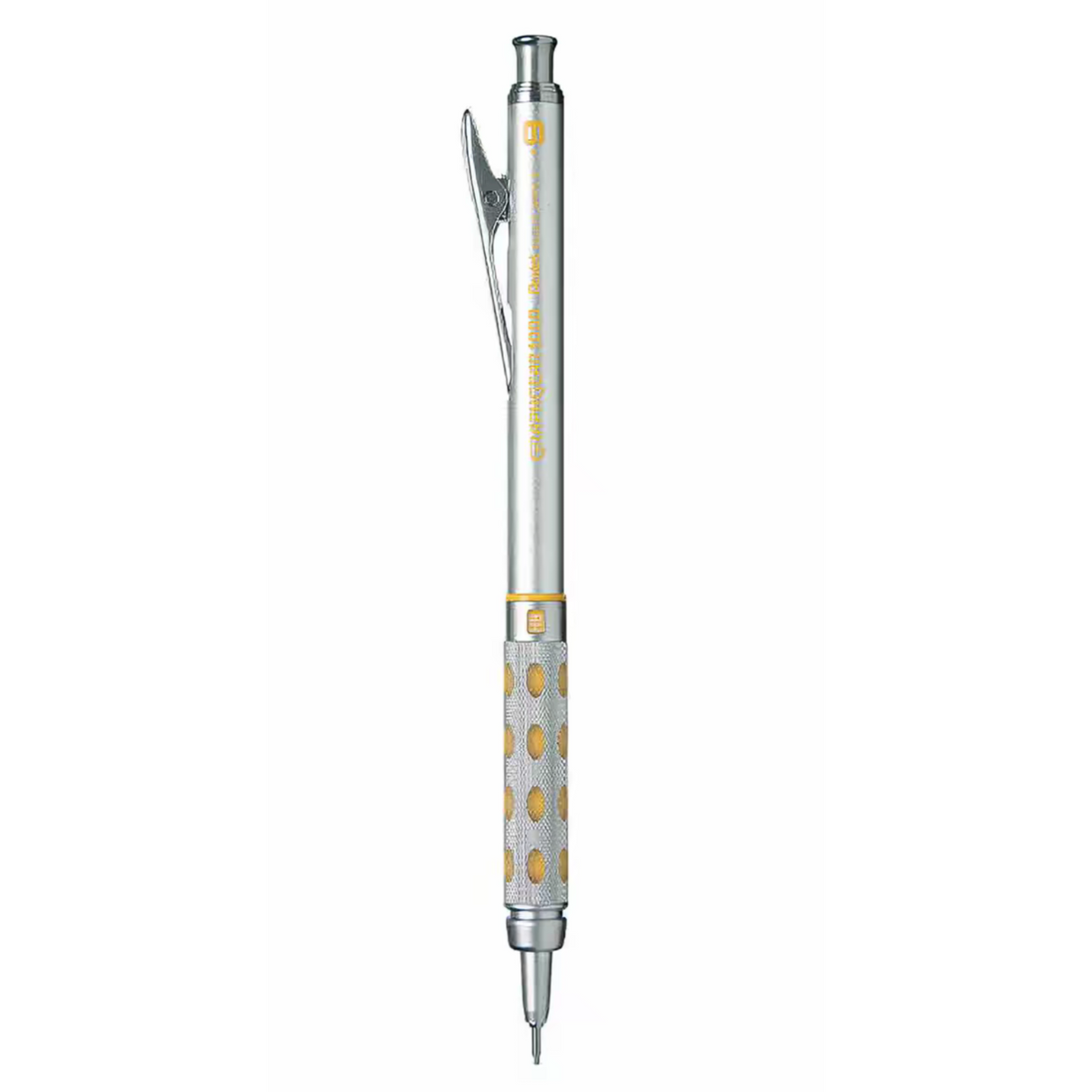

• Four Precision Lead Sizes: Available in color-coded diameters including 0.3mm (brown), 0.5mm (black), 0.7mm (blue), and 0.9mm (yellow).
• Full Metal Construction: Heavy-duty aluminum body, steel clip, and brass internal clutch ensure a well-balanced, low center of gravity.

Specifications

• Brand: Pentel
• Model Series: GraphGear 1000 (PG1013 / PG1015 / PG1017 / PG1019)
• Lead Diameters: 0.3 mm, 0.5 mm, 0.7 mm, 0.9 mm
• Body Material: Brushed Aluminum, Steel, Brass
• Grip Type: Knurled Aluminum with Rubber Pads
• Mechanism: Dual-Action Click & Clip Retraction
• Country of Origin: Japan

Frequently Asked Questions

• How does the retractable tip mechanism work? Clicking the rear button deploys the 4mm drafting sleeve for writing or drawing. Clicking the spring-loaded pocket clip instantly retracts the tip inside the barrel to prevent bending or damage.
• Which lead size should I choose? 0.3mm is ideal for ultra-fine drafting; 0.5mm is the standard for everyday writing and sketching; 0.7mm provides extra break resistance for bold notes; 0.9mm is perfect for bold lines and heavy-handed drawing.
• Can I refill the lead and eraser? Yes, remove the rear push button to reload standard mechanical pencil leads and access the replaceable eraser (Pentel Z2-1N).
• How do I adjust the lead hardness indicator? Loosen the textured metal grip slightly, turn the inner sleeve to reveal your loaded lead grade, and tighten the grip back securely.
• What is the customer support and order policy? Inquiries can be sent to szjyf@outlook.com with your order number. Inquiries are handled post-order, and full refunds are supported prior to order shipment confirmation.
